PubSub

Consumes events from a given Salesforce PubSub channel.

Overview​

The Salesforce PubSub input allows you to consume events from a subscription channel using the Salesforce PubSub GRPC streaming API.

Key Features​

  • Custom Event Support: Consume from any subscription channel with streaming enabled, including custom events
  • Automatic State Tracking: Maintains state to resume consumption after service disruptions
  • Historical Event Processing: Processes all available events in the channel on initialization
  • Efficient Data Collection: Only collects new events on subsequent runs

How It Works​

The input uses state tracking to efficiently collect events:

  1. Initial Run: Collects all events available in the channel (as far back as the channel's storage retention allows)
  2. Subsequent Runs: Collects only events that occurred after the last successful run
  3. State Management: Updates the replay ID with each successfully processed event to track progress

Prerequisites​

Before configuring the Salesforce PubSub input, ensure you have:

  1. Salesforce Account: Access to a Salesforce organization with PubSub API enabled
  2. PubSub Channel: A subscription channel with streaming and storage enabled
  3. Administrative Access: Permissions to create External Client Apps and manage OAuth settings

Setup Instructions​

Step 1: Creating a Salesforce External Client App​

  1. Log in to your Salesforce account
  2. Navigate to Setup > Apps > External Client Apps > External Client App Manager
  3. Click New External Client App on the top right
  4. Fill in Basic Information section:
    • External Client App Name: Your App Name. E.g., "Monad Salesforce PubSub"
    • Contact Email: Your email address
    • Distribution State: Leave as default "local"

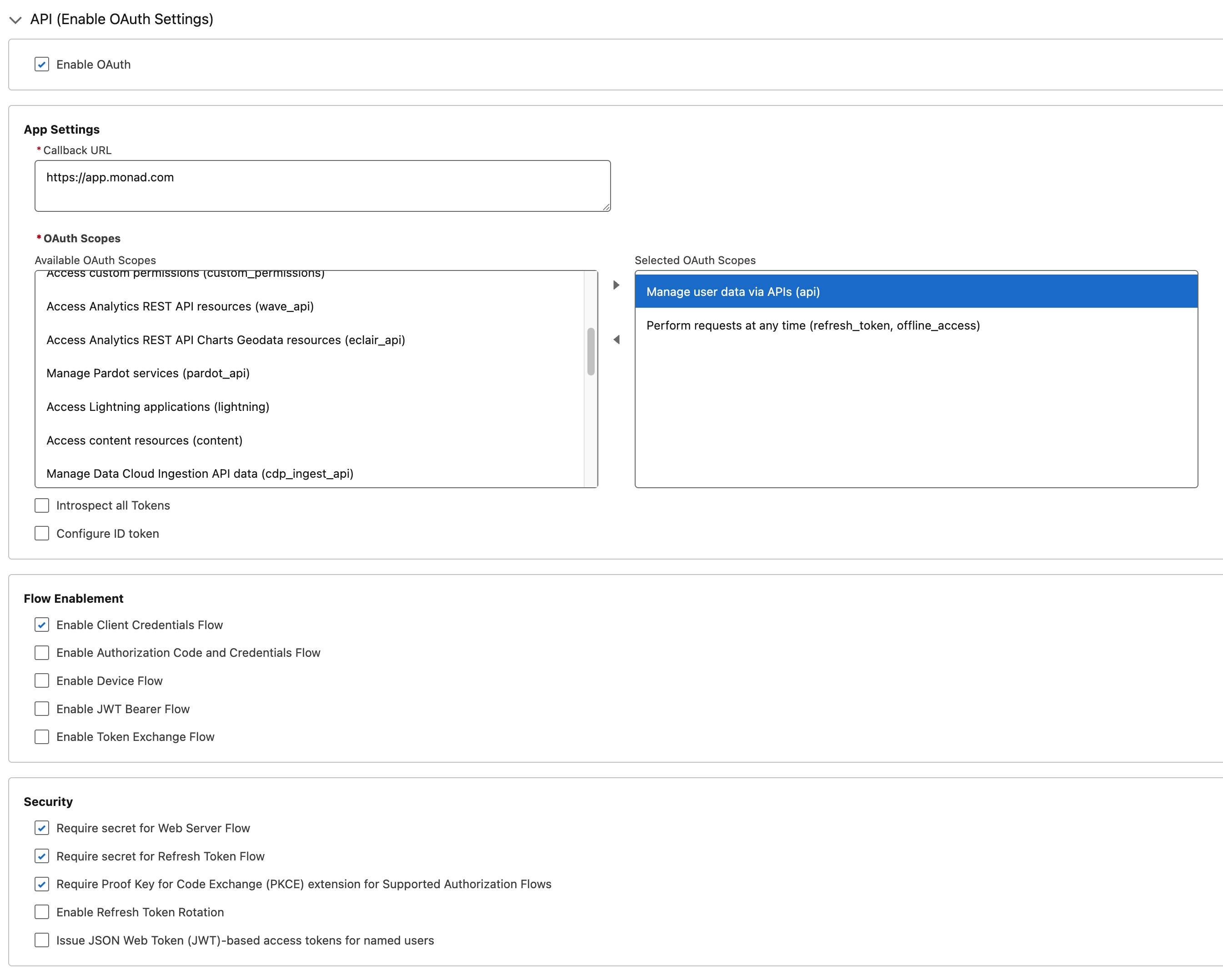

  5. In API (Enable OAuth Settings) section:
    • Check Enable OAuth
    • Callback URL: https://app.monad.com
      • This can be anything and is not used. It is required by Salesforce.
    • OAuth Scopes: Add the following scopes:
      • Manage user data via APIs (api)
      • Perform requests at any time (refresh_token, offline_access)
  6. Enable Enable Client Credentials Flow
  7. All other settings can be left as default
  8. Click Create

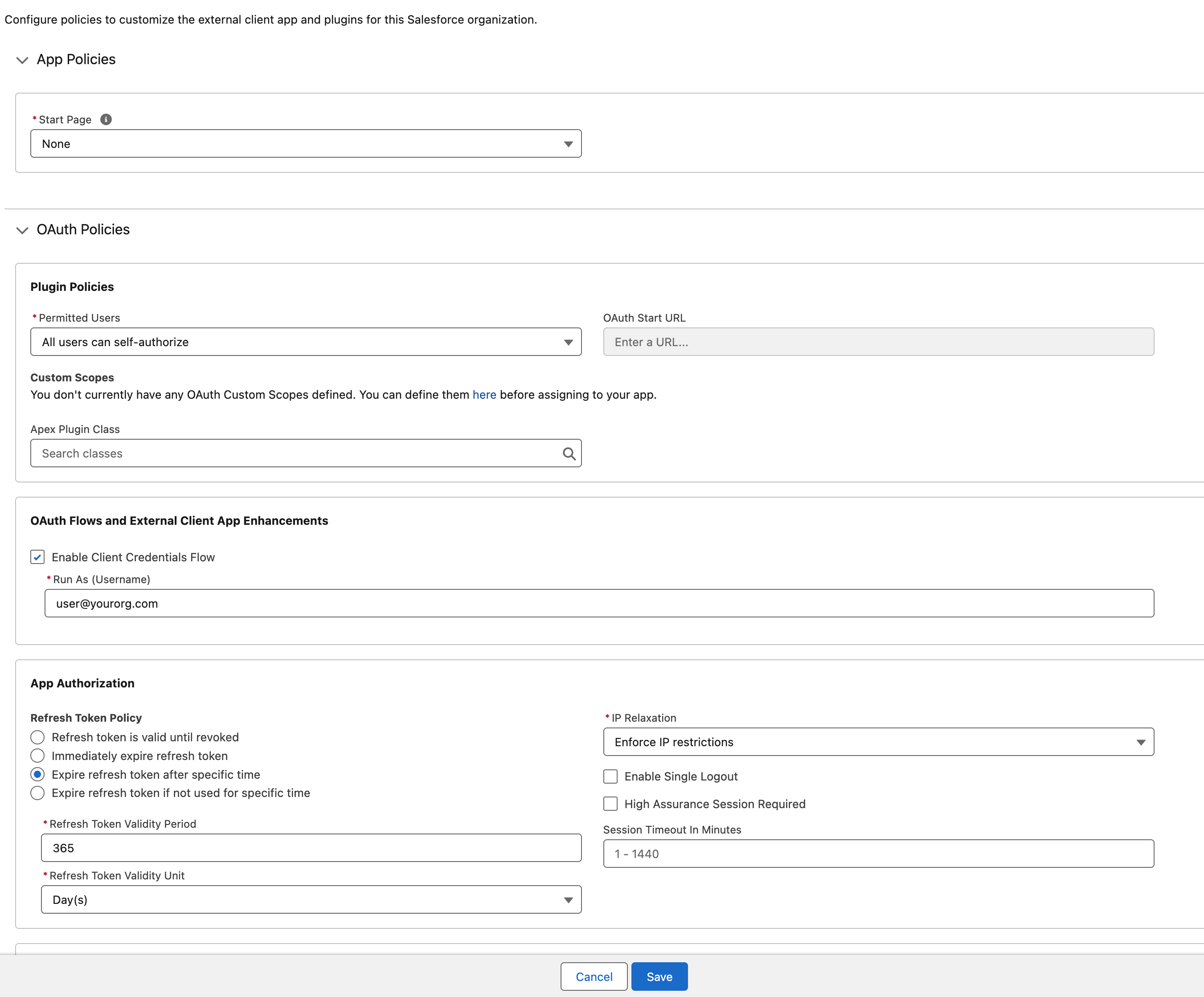

Step 2: Configuring OAuth Policies​

  1. After creating the app, you will be redirected to the app's detail page
  2. Click Edit on the top right
  3. In the OAuth Policies section:
    • Enable Enable Client Credentials Flow
    • Set Run As to an appropriate user with access to the PubSub channel
  4. All other settings can be left as default
  5. Click Save

Step 3: Retrieving Client Credentials​

  1. From the new External Client App's detail page, navigate to Settings > OAuth Settings
  2. Click Consumer Key and Secret
    • Verification may be required before viewing the secrets
  3. Copy the Consumer Key and Consumer Secret.
    • These will be used as the Client ID and Client Secret in the input configuration.

Configuration​

Required Settings​

SettingTypeDescriptionHow to Find
DomainURLstringDomain URL for your Salesforce instanceSetup > Company Settings > My Domain → Current My Domain URL
OrganizationIDstringOrganization ID for your Salesforce instanceSetup > Company Settings > Company Information → Salesforce.com Organization ID
TopicstringPub/Sub topic to subscribe toSetup > Events > Event Manager > Subscription Channel

Required Secrets​

SecretDescription
Client IDOAuth Client ID from the External Client App (Consumer Key)
Client SecretOAuth Client Secret from the External Client App (Consumer Secret)

Technical Details​

API Integration​

This input uses the Salesforce Pub/Sub API via GRPC endpoints:

  • Primary Method: Subscribe - Consumes events from the subscription channel
  • Supporting Methods:
    • GetTopic - Verifies topic accessibility and configuration
    • GetSchema - Retrieves the schema for message decoding

Authentication & Rate Limiting​

  • Authentication: OAuth 2.0 Client Credentials flow
  • Rate Limiting: Automatically respects Salesforce's API rate limits
  • Connection Management: Maintains persistent GRPC streaming connections

Troubleshooting​

Common Issues​

  1. No Events Returned
    • Check that the channel has streaming enabled in Setup > Events > Event Manager
  2. Missing Events or Gaps in Events
    • Ensure the channel has storage enabled to retain events in Setup > Events > Event Manager
  3. Authentication Errors
    • Verify Enable Client Credentials Flow is enabled in both the External Client App Settings and OAuth Policies
